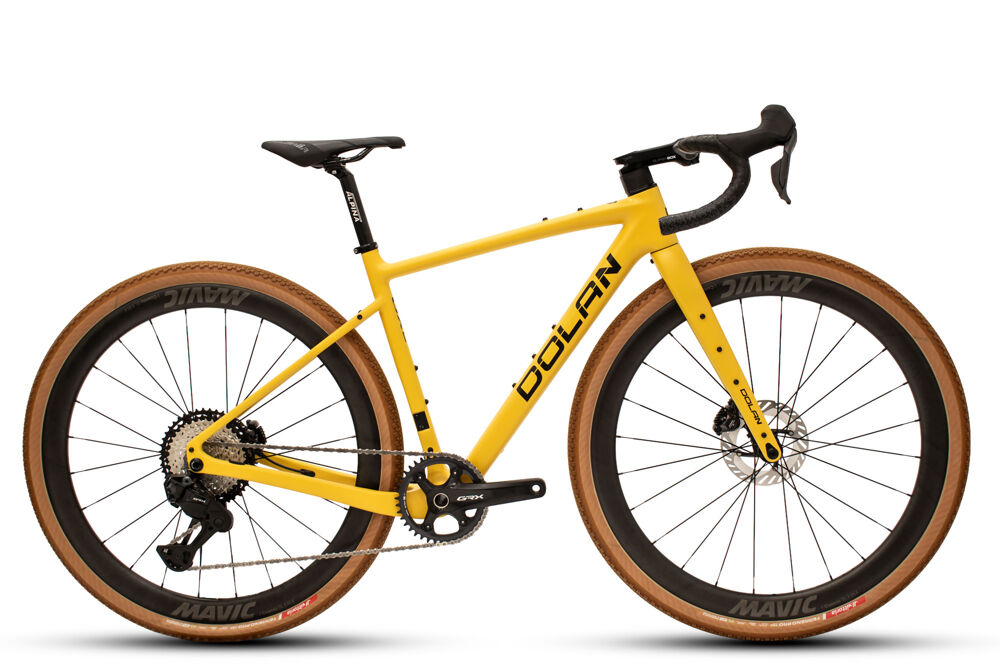

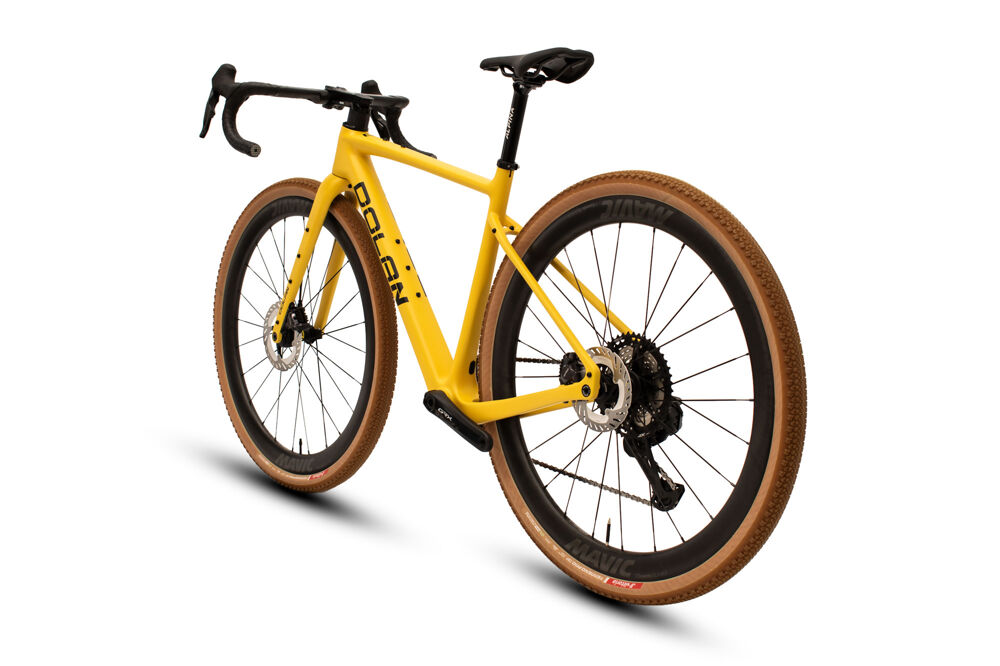

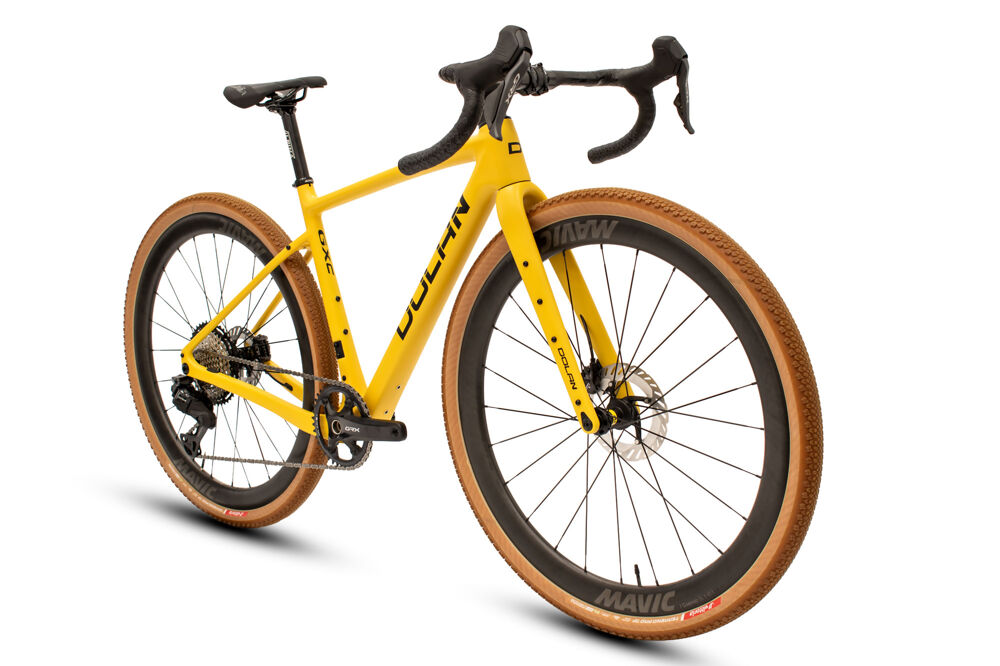

Dolan GXC Carbon Disc Gravel Bike - Shimano GRX RX820 1x12/2x12 HDR

Image for illustration purpose only, for full product specification see bike builder below

Delivery Information
BIKES: Standard colours dispatched within 25 working days. Custom colours dispatched within 25 working days. FRAMESETS: Standard colours dispatched within 3/4 working days. Custom colours dispatched within 25 working days.
Payment Information
Cycle to work, 0% finance, credit and debit card, apple and google pay - find out more about all our payment options.
X-Small
  • 5'2" - 5'5" - 157.5-167.5cm
  • Crank Length: 170mm
  • Stem: 8cm
  • Bar Width: 40cm
Small
  • 5'4" - 5'8" - 162-172.5cm
  • Crank Length: 172.5mm
  • Stem: 9cm
  • Bar Width: 42cm
Medium
  • 5'8" - 5'11" - 172.5-180cm
  • Crank Length: 172.5mm
  • Stem: 10cm
  • Bar Width: 44cm
Large
  • 5'10" - 6'2" - 177.5-187.5cm
  • Crank Length: 172.5mm
  • Stem: 11cm
  • Bar Width: 44cm
X Large
  • 6'1" - 6'4" - 185-192.5cm
  • Crank Length: 175mm
  • Stem: 12cm
  • Bar Width: 46cm
Size X-SML SML MED LRG X-LRG XX-LRG
A Head Angle 70.5 71 71.5 72 72 72
B Head Tube Length (mm) 120 140 150 170 190 210
C Effective Top Tube Horizontal (mm) 525 535 545 560 575 595
D Seat Angle 74.5 74 73 73 72.5 73
E Seat Tube Length Center To Top (mm) 490 520 540 560 580 610
F Stack (mm) 541 560 572 592 609 624
G Reach (mm) 366 370 371 380 383 404.2
Frame Size
View More View Less
GXC Custom Colour
View More View Less
Fork Option
Seatpost Option
Alpina 11/8
Dolan GXC Frame Inserts
Alpina Single Bolt 31.9mm Seatpost Clamp
GXC Axle Kit - Frame/Fork
Adjustable Fork Expander
GXC / GX1 Dropout



Chainset Type
Chainset Size
View More View Less
Cassette Size
Rear Mech Option
Front Mech Option
Shimano GRX ST-RX820 Disc Brake STI's & BR-RX820 Flat Mount Calipers
Shimano Ice Freeza Disc Rotor RT800 CL - 140mm(Front) -140mm(Rear)
Shimano CN-M6100 12spd Chain (With Quick Link)
Shimano BB72 Press Fit Bottom Bracket
Handlebar/Stem Model
Handlebar Size
View More View Less
Stem Size
View More View Less
Handlebar Tape
View More View Less
Saddle Option
View More View Less
Pedals
View More View Less
Wheelset
View More View Less
Tyre Type
Tyre Option
View More View Less
Mudguard Option
Pannier Rack
Trunk Bag
Seatpost Bag
Handlebar Bag
Top Tube Mounted Bag (1)
Top Tube Mounted Bag (2)
Garmin Edge
View More View Less
Cages
View More View Less
Product Information

The Dolan GXC, our all-terrain adventure gravel bike.

Designed and engineered with adventure in mind, the Toray T800 Carbon bike build options provide you with a choice of wheelset options, 650b and 700c with tyre clearances up to 50mm and 45mm respectively.  Accompanying this, the GXC's gravel-specific dropped chainstay, mudguard and pannier mounts allow you to ride the GXC anywhere.

Following results from a thorough research and development period, involving commuting, gravel and multi-day adventuring,  the creation of a lightweight responsive frameset capable of any discipline you choose was achieved.

Available as part of our custom colour range, the GXC truly is designed and built for your chosen discipline.

Technical Specifications:

Sizes: XS/S/M/L/XL/XXL
Frame: UD Toray T700/T800 Carbon Fibre construction with EPS technology, rear mudguard and rack mounts and 3 bottle cage locations
Bottom Bracket: Pressfit
Brakes: Flat Mount Disc
Axles: 12x100mm Front, 12x142mm Rear
Forks: Carbon UD 1-1/8" to 1-1/2" with mudguard eyelets
Seattube Diameter: 27.2mm

Specifications
  • Tyre Type: Clincher, Tubeless
  • Material: Carbon
  • Bike Type: Road
  • Bike Model: GXC
  • Seatpost Diameter : One Size
  • Brand: Dolan
  • Gender: Male, Female
