Titanium design with titanic stopping power

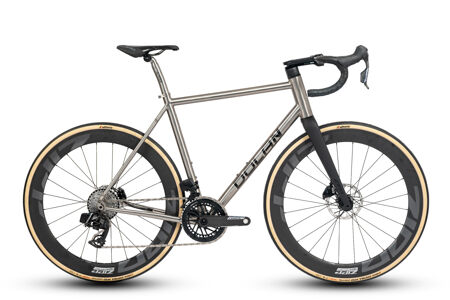

The Dolan ADX Disc combines disc braking with a quality titanium design. The result is a ride with incredible stopping power that’s both responsive and predictable. With a variety of build options, the groupset, wheelset and finishing kits can all be customised based on budget.The ADX Disc is designed for distance riding and all-day comfort. The higher head tube and shorter top tube help the distance rider hone their sportive position for a long day in the saddle. Additionally, curved seat stays help ensure vibration damping for an all-round smoother riding experience.The frame is equipped with internal cable routing and can be adapted to either mechanical or electronic groupsets. It also incorporates mudguard clearance and rear pannier mounts that transform the ADX Disc into the ultimate touring machine regardless of the conditions.
Shop Now



Curved Seat Stays

Engineered for supreme all-day comfort, the curved seat stays ensure a smooth ride and increased damping of vibration

Flat Mount Disc Brakes

For unmatched control and stopping power in the wet or on fast descents

Full Carbon Fork

Engineered for a lighter and more forgiving ride with supreme cornering ability

Internal Cable Routing

With a supreme clean aero look, the internal routing provides seamless integration with electronic or manual shifters.

Mudguard Bosses

Fully compatible with front and rear mudguards make the ADX a year-round companion no matter the conditions.

Pannier Rack Bosses

The strength of the titanium frame enables the inclusion of rear panniers for ultimate road adaptability.

Semi-Sloping Geometry

For increased vertical compliance and all-day comfort over long distance.

Who is it for?

Whether sweeping down a long descent in a sportive, or cycling on wet roads in an Audax ride, the supreme braking power offered by the ADX Disc is as good as it gets.

The perfect choice for distance riders, this quality titanium solution excels where others simply can’t. The titanium frame ensures a forgiving ride during long days on the road. While pannier mounts allow you to convert the ADX Disc into the ultimate commuter or touring machine.

Size 50.5cm 52.5cm 54.5cm 56.5cm 58.5cm
A Head Angle 72.5 73 73.0 73.5 74.0
B Head Tube Length (mm) 135 152 170 180 205
C Effective Top Tube Horizontal (mm) 531 539 549 567 580
D Seat Angle 74.5 74.0 74.0 73.5 73.5
E Seat Tube Length Center To Top (mm) 505 525 545 565 585
F Stack (mm) 544 562 579 590 616
G Reach (mm) 380 378 384 392 398
WB 987 986 997 1004 1012


Want to find out more about The Dolan ADX-Disc? What is the warranty? Or What does the ADX-Disc weigh? The Answers to these and more can be found below.

This Titanium Disc frame weighs approximately 2.3kg on a 54.5cm frame/Fork.

The frame carries a 2 year warranty. All other parts have the standard manufacturer's warranty.

The ADX-Disc has clearance for 32mm tyres Max.

There are 2 sets of bottle cage mounts.

We recommend a maximum rider weight of 120kgs.

Yes, the frame has discreet mudguard mounts for fitting full length mudguards.

The BB shell is English Thread 68mm

The ADX-Disc seatpost is a 31.6mm diameter and is supplied with the bike.

The frame takes flat mount hydraulic disc brakes

The ADX-Disc Titanium has mounts for a rear pannier rack and accommodate 20kgs of luggage with ease.

Due to the many different systems people use we do not supply pedals with bikes.
