An all year round, multi terrain lover.
Constructed using triple butter 7005 alloy tubing, paired with a full carbon fork the Dolan RDX ticks a whole host of boxes. Incorporating integrated mudguard mounts front and rear, combined with a rear pannier mounting system, the Dolan RDX is capable of being your year-round sportive companion to your fully kitted out commuter colleague. Tyre clearances of 32mm with a full-length mudguard allow for those sneaky short cut deviations across trails and rough terrain with the confidence in the stability and balance of the versatile Dolan RDX. Incorporating the latest in flat mount disc brake technology sees the Dolan RDX equipped with unrivalled stopping power regardless of weather, the peak of summer rides through the local lanes and favourite ascent to those tougher winter miles often dodging the wet, conditions.
Shop Now

RDX

Features

7005 Triple Butted Frame

A solidly built frame with a supreme strength to weight ratio lets you go where you simply can’t on a standard road bike.

Flat Mount Disc Brakes

For unmatched control and stopping power in the wet or on fast descents

Full Carbon Fork

Engineered to give you an edge. Lighter and more forgiving with supreme cornering ability

Internal Cable Routing

For streamlined speed and a clean aero look

Mudguard Bosses

Designed for versatility and year-round performance with clearance for front and rear mudguards.

Pannier Rack Bosses

Whether touring or commuting, the sturdy frame design enables the inclusion of rear panniers for ultimate road adaptability.

Upto 32mm Tyre Clearance

An adaptable design that permits optimal tyre choice for winter training or rough roads.

Who is it for?

The Dolan RDX has been the choice from riders across a whole host of disciplines, commuter to cross rider, road lover to gravel adventurer. Be it the flat lands of the inner-city commuter to the steepest of routes for the seasoned sportive rider the Dolan RDX has performed across the spectrum. A bike designed to perform out on the hills, to be capable of nipping to the local pub down the canal path, the Dolan RDX stands out creating opportunities an out and out road bike you’d possibly think twice about. A sense of adventure, whilst offering the practicality of full length mudguards and panniers, the Dolan RDX caters for the many.

Size 50cm 52cm 54cm 56cm 58cm 60cm
A Head Angle 72.0 72.3 73.0 73.0 73.0 73.0
B Head Tube Length (mm) 120 130 140 150 180 200
C Effective Top Tube Horizontal (mm) 535.5 554.9 559.5 566.8 578.1 585.8
D Seat Angle 75.3 74.0 74.0 74.0 74.0 74.0
E Seat Tube Length Center To Top (mm) 500 520 540 560 580 600
F Stack (mm) 537.1 548.3 559.6 569.2 597.9 617
G Reach (mm) 396.7 397.8 399 403.7 406.7 408.9

FAQS

Want to find out more about The Dolan RDX? What is the warranty? Or What does the RDX weigh? The Answers to these and more can be found below.

This 7005 triple butted aluminium frame weighs approximately ??kg on a 54cm frame/Fork.

The frame carries a 2 year warranty. All other parts have the standard manufacturer's warranty.

The RDX has clearance for 32mm tyres Max.

There are 2 sets of bottle cage mounts.

We recommend a maximum rider weight of 120kgs.

Yes, the frame has discreet mudguard mounts for fitting full length mudguards.

The BB shell is English Thread 68mm

The RDX seatpost is a 27.2mm diameter and is supplied with the bike.

The frame takes flat mount hydraulic disc brakes
Due to the many different systems people use we do not supply pedals with bikes.
(2)
Sort By
  • Low to High
  • High to Low
  • A to Z
  • Z to A
  • New In
£999.98

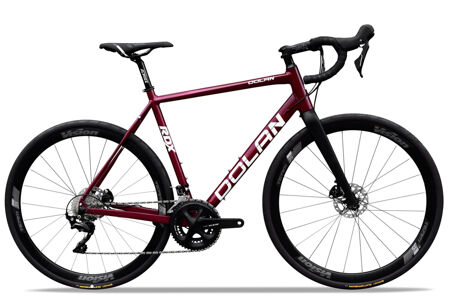

Dolan RDX Aluminium Disc Bike - Shimano 105 R7020
£13.66 per month on finance
£1299.98
Dolan RDX Aluminium Disc Bike - Shimano Ultegra R8020
£17.75 per month on finance
You've viewed 2 of 2 products
