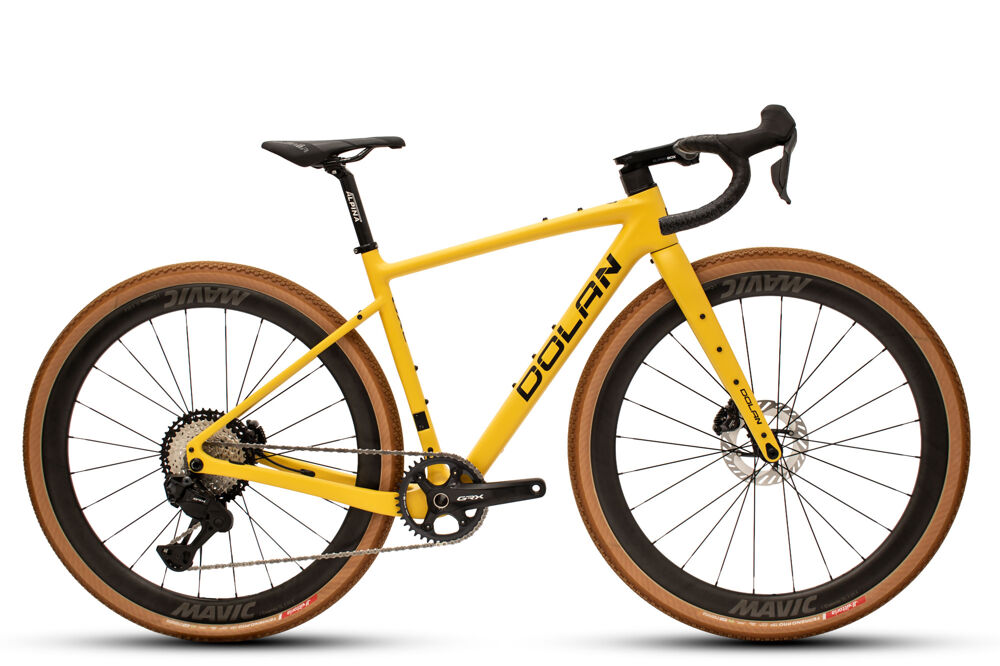

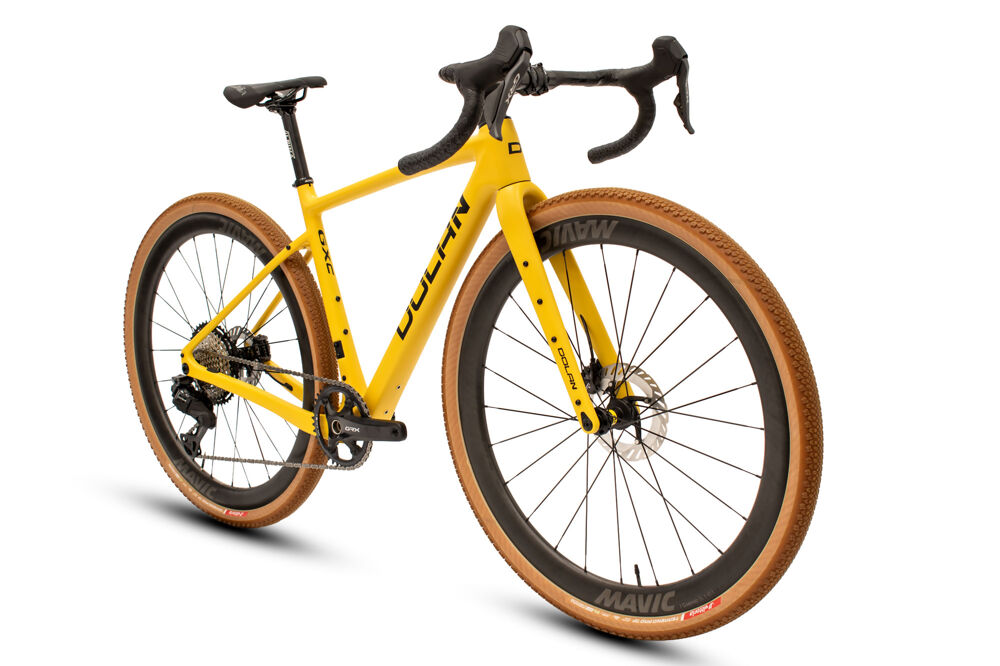

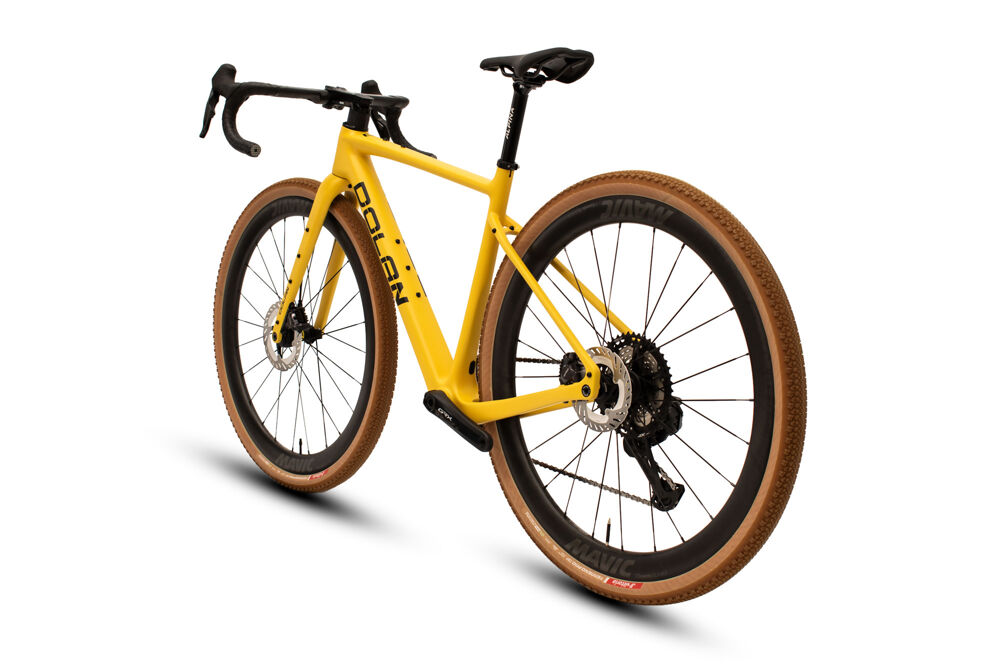

Dolan GXC Carbon Disc Gravel Bike - Shimano GRX RX815 Di2 1x11/2x11 HDR

Image for illustration purpose only, for full product specification see bike builder below

The Dolan GXC, our all-terrain adventure gravel bike.??Designed and engineered with adventure in mind, the Toray T800 Carbon bike build options provide you with a choice of wheelset options, 650b and 700c with tyre clearances up to 50mm and 45mm respectively.  Accompanying this, the GXC's gravel-specific dropped chainstay, mudguard and pannier mounts allow you to ride the GXC anywhere.??

Delivery Information
BIKES: Standard colours dispatched within 25 working days. Custom colours dispatched within 25 working days. FRAMESETS: Standard colours dispatched within 3/4 working days. Custom colours dispatched within 25 working days.
Payment Information
Cycle to work, 0% finance, credit and debit card, apple and google pay - find out more about all our payment options.
X-Small
  • 5'2" - 5'5" - 157.5-167.5cm
  • Crank Length: 170mm
  • Stem: 8cm
  • Bar Width: 40cm
Small
  • 5'4" - 5'8" - 162-172.5cm
  • Crank Length: 172.5mm
  • Stem: 9cm
  • Bar Width: 42cm
Medium
  • 5'8" - 5'11" - 172.5-180cm
  • Crank Length: 172.5mm
  • Stem: 10cm
  • Bar Width: 44cm
Large
  • 5'10" - 6'2" - 177.5-187.5cm
  • Crank Length: 172.5mm
  • Stem: 11cm
  • Bar Width: 44cm
X Large
  • 6'1" - 6'4" - 185-192.5cm
  • Crank Length: 175mm
  • Stem: 12cm
  • Bar Width: 46cm

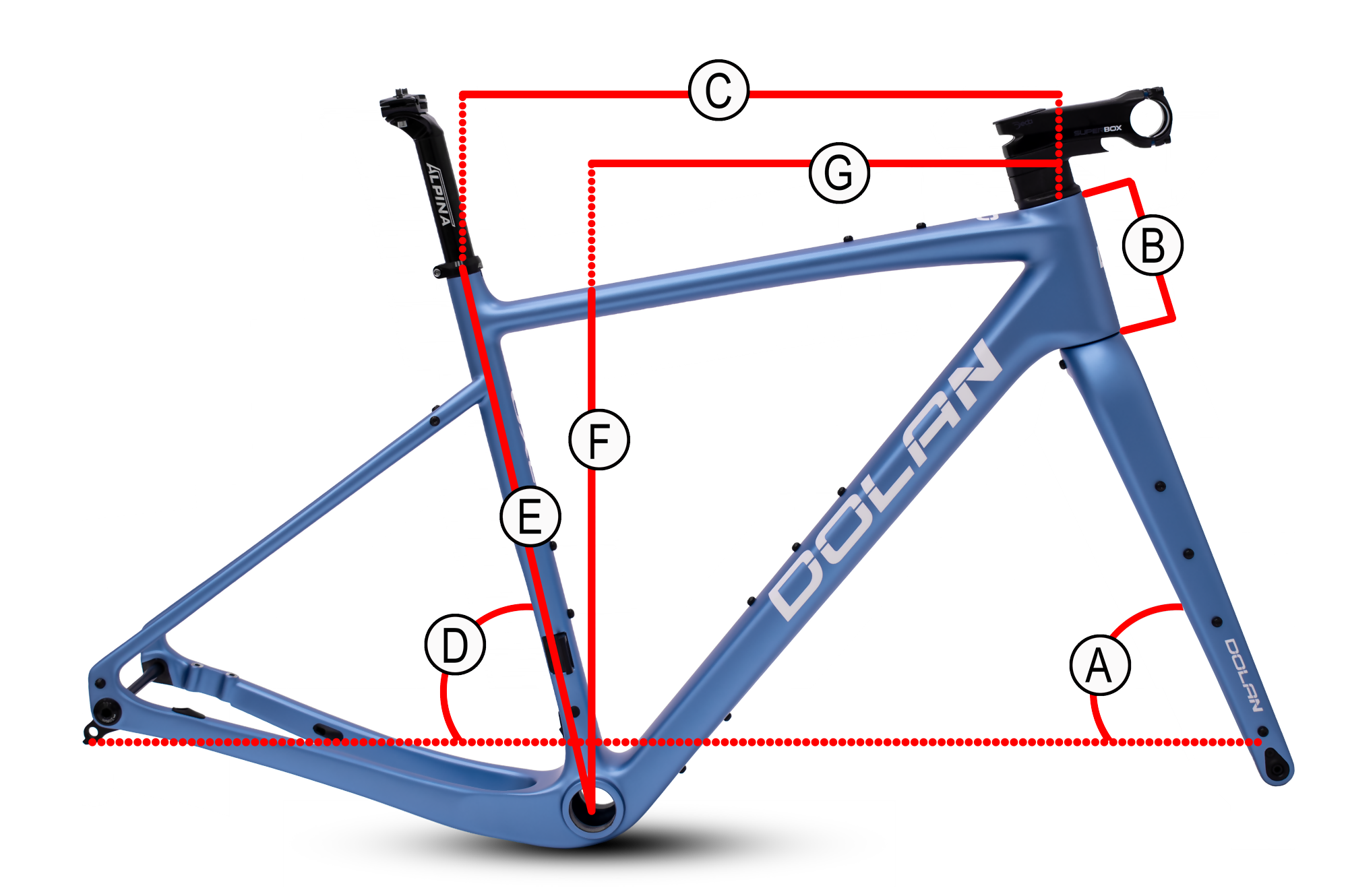

Size X-SML SML MED LRG X-LRG XX-LRG
A Head Angle 70.5 71 71.5 72 72 72
B Head Tube Length (mm) 120 140 150 170 190 210
C Effective Top Tube Horizontal (mm) 525 535 545 560 575 595
D Seat Angle 74.5 74 73 73 72.5 73
E Seat Tube Length Center To Top (mm) 490 520 540 560 580 610
F Stack (mm) 541 560 572 592 609 624
G Reach (mm) 366 370 371 380 383 404.2
Frame Size
View More View Less
GXC Custom Colour
View More View Less
Fork Option
Seatpost Option
Alpina 11/8
Alpina Single Bolt 31.9mm Seatpost Clamp
GXC Axle Kit - Frame/Fork
Dolan GXC Frame Inserts
Adjustable Fork Expander
GXC / GX1 Dropout



CHAINSET TYPE
CHAINSET SIZE
View More View Less
CASSETTE SIZE
FRONT MECH OPTION
REAR MECH OPTION
STI/CALIPER OPTION
Shimano Ice Freeza Disc Rotor RT800 CL - 140mm(Front) -140mm(Rear)
KMC X11 11spd Chain
Shimano BB72 Press Fit Bottom Bracket
Shimano Internal Di2 Battery BT-DN1101
Shimano Di2 Internal Battery charger - SM-BCR2
Shimano EW-RS910 E-TUBE Junction A
Di2 Junction B box - internal - JC41
Di2 350mm EW-SD50 Wire (Set 1)
Di2 700mm EW-SD50 Wire (Set 2)
Di2 1000mm EW-SD50 Wire (Set 3)
Handlebar/Stem Model
Handlebar Size
View More View Less
Stem Size
View More View Less
Handlebar Tape
View More View Less
Saddle Option
View More View Less
Pedals
View More View Less
Wheelset
View More View Less
Tyre Type
Tyre Option
View More View Less
Seatpost Bag
Mudguard Option
Pannier Rack
Trunk Bag
Handlebar Bag
Top Tube Mounted Bag (1)
Top Tube Mounted Bag (2)
Product Information

The Dolan GXC, our all-terrain adventure gravel bike.??Designed and engineered with adventure in mind, the Toray T800 Carbon bike build options provide you with a choice of wheelset options, 650b and 700c with tyre clearances up to 50mm and 45mm respectively.  Accompanying this, the GXC's gravel-specific dropped chainstay, mudguard and pannier mounts allow you to ride the GXC anywhere.

Following results from a thorough research and development period, involving commuting, gravel and multi-day adventuring,  the creation of a lightweight responsive frameset capable of any discipline you choose was achieved.

Available as part of our custom colour range, the GXC truly is designed and built for your chosen discipline.

Technical Specifications:

Sizes: XS/S/M/L/XL/XXL

Frame: UD Toray T700/T800 Carbon Fibre construction with EPS technology, rear mudguard and rack mounts and 3 bottle cage locations

Bottom Bracket: Pressfit

Brakes: Flat Mount DiscAxles: 12x100mm Front, 12x142mm Rear?Forks: Carbon UD 1-1/8" to 1-1/2" with mudguard eyelets

Seattube Diameter: 27.2mm

Specifications
  • Tyre Type: Clincher, Tubeless
  • Material: Carbon
  • Bike Type: Adventure & Touring
  • Bike Model: GXC
  • Seatpost Diameter : 27.2mm
  • Seatclamp Diameter : 31.9 mm
  • Brand: Dolan
  • Gender: Unisex
