Zonda Disc Brake
Zonda™ Disc Brake is a benchmark for all mid-range aluminium Disc Brake wheels.
A completely redesigned structure specific to bicycles with disc brakes.
The result is all-round improved reactivity, especially thanks to the asymmetrical rims and Mega G3™ hubs on both wheels. This innovative solution provides a stable front wheel that is able to absorb energy from the braking torque generated on the left-hand side and a rear wheel that guarantees maximum power transfer from the cyclist.
Spokes
Spoke count:16 variable-section stainless-steel radial aero spokes (front) and 21 variable-section stainless-steel aero spokes (rear) with a 2:1 spoke ratio on the drive side
RDB
Steel spokes with aerodynamic profile
Exclusive MEGA-G3 spoke lacing pattern
Anty-Rotation System
Self-locking nipples
Compatibility
Campagnolo FH Body 9/10/11/12
FH Body HG 9/10/11
Compatible with HH12, QR and 135 and 142 rear hubs
Two different interfaces with the rotor: 6 bolts and AFS™

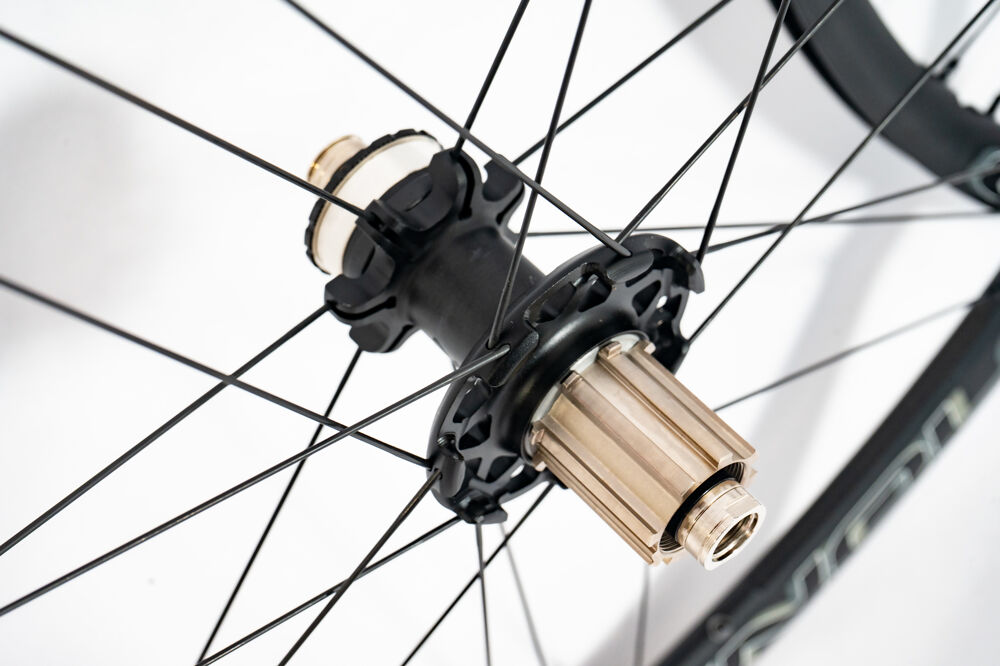

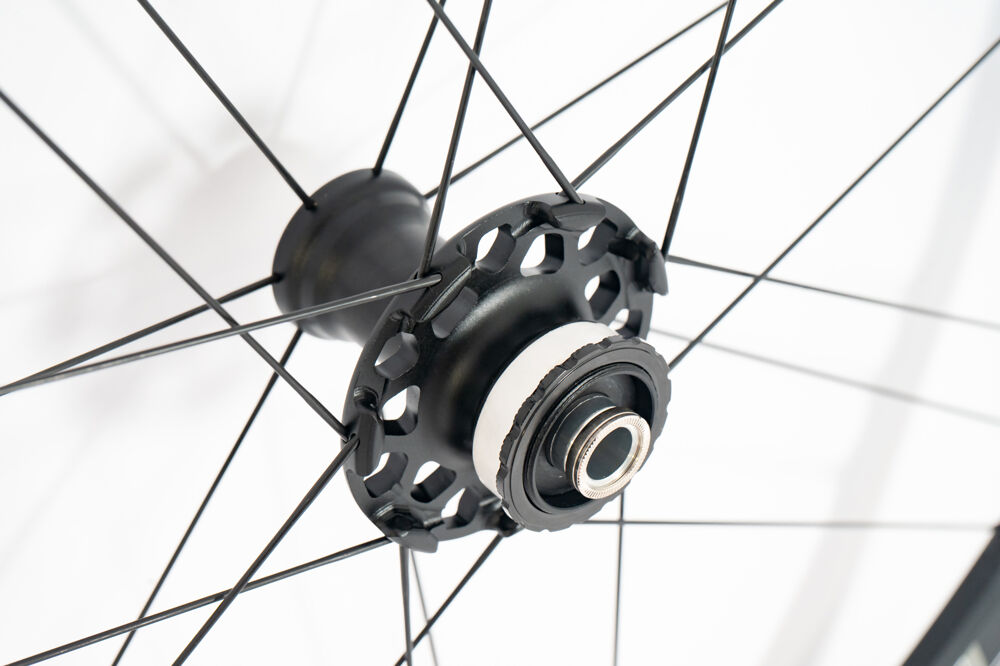

Hub
Aluminium hub with black finish
Steel bearings
Hub edge: 100mm (front) 135/142mm (rear)
Oversize flange
Cup-and-cone bearing system

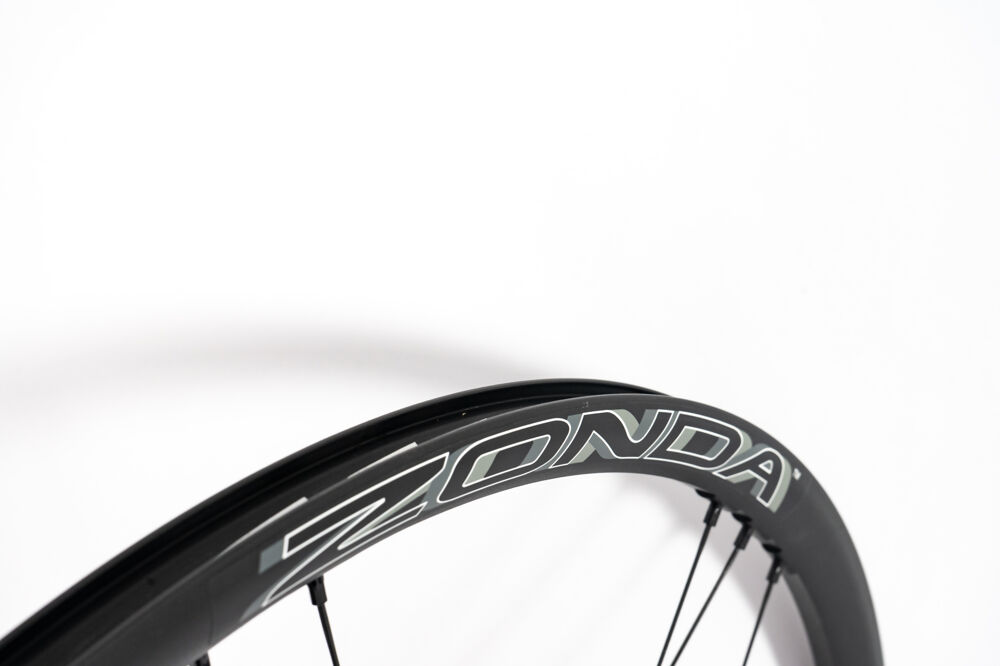

Rim
Differentiated rim height: 24/27-27/30 mm
Profile width: 22 mm
Rim material: Aluminium
Graphic colours: Bright Label
Tires
Wheel for clincher tyre
