Features

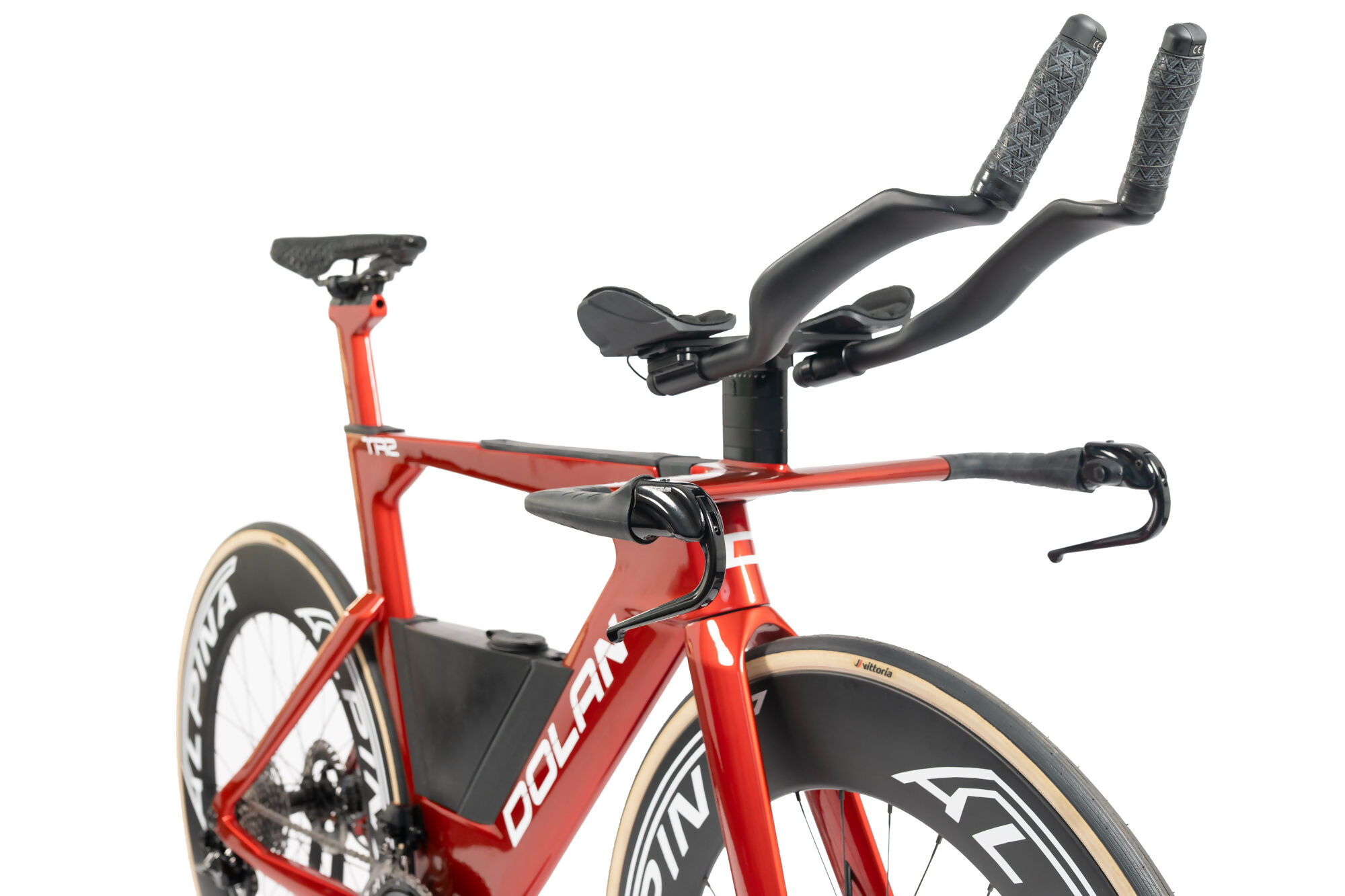

Integrated Aerobar

Low-drag design + inward-retractable elbow pads reduce the windward area by over 30%, enhancing aerodynamic integrity.

Balance

Lightweight and Rigidity High-modulus carbon fiber material keeps the frame weight within 1600g-1740g, while maintaining the rigidity of the bottom bracket area to avoid power loss.

Saddle Adjustment

With a saddle adjustment angle of 78-80°,it optimises the torso-leg space, reduces breathing resistance during riding, and increases leg room

X-Small

168cm-175cm
Crank Length: 170mm
Stem: OSFA
Bar Width: OSFA

Small

173CM-178CM
Crank Length: 170mm
Stem: OSFA
Bar Width: OSFA

Medium

173cm-183cm
Crank Length: 172.5mm
Stem: OSFA
Bar Width: OSFA

Large

180cm-188cm
Crank Length: 172.5mm
Stem: OSFA
Bar Width: OSFA

X Large

185cm-191cm
Crank Length: 175mm
Stem: OSFA
Bar Width: OSFA

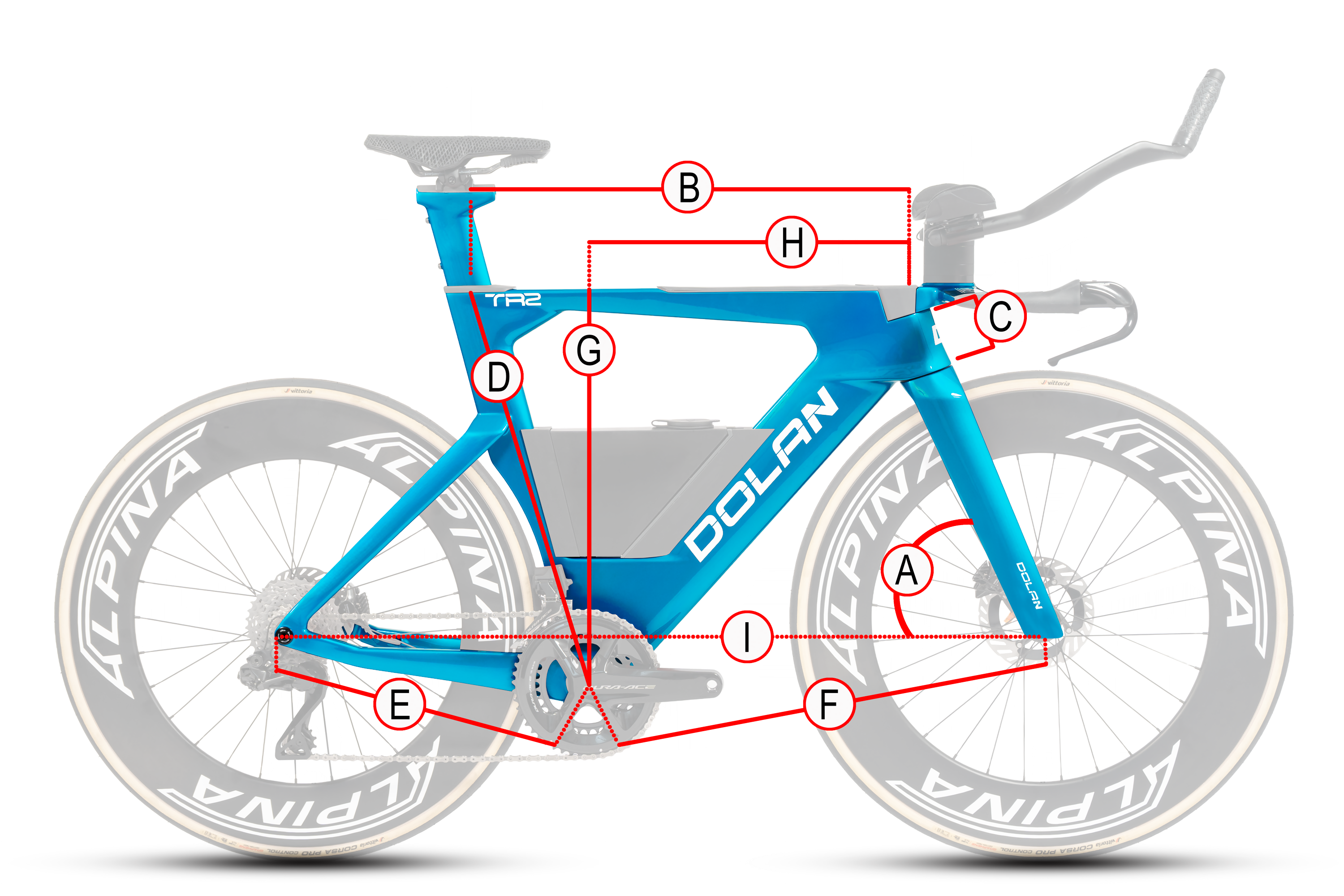

Size		X-Small (49)	Small (52)	Medium (54)	Large (56)	X-Large (58)
A	Head Angle	72.5	72.5	72.5	72.5	72.5
B	Top Tube Range (mm)	492	517	560	574	593
C	Head Tube Length (mm)	66	67.5	83	104	120
D	Seat Tube Length Center To Top (mm)	535	537	555	572	588
E	Front Center (mm)	410	410	410	410	410
F	Rear Center (mm)	572	597	622	658	678
G	Stack (mm)	522	524	535	559	574
H	Reach (mm)	380	405	426	455	470
I	Wheel Base	969	994	1019	1055	1075
