Lighter. Faster. Further.
Engineered for uncompromising speed, efficiency, and precision, this race-focused platform is constructed from premium Toray T1000 super-light carbon fibre and built around a fully integrated, internally routed frame design. The result is exceptional aerodynamic performance paired with a refined, minimalist aesthetic.Featuring a T47 bottom bracket, a UHD (Universal Hanger Derailleur) rear hanger, and seamlessly integrated 12mm thru-axles, every detail has been optimised to enhance stiffness, reliability, and responsiveness. The aero-optimised tube profiles maximise power transfer under load, ensuring every watt is translated into forward momentum.Designed to accommodate both mechanical and electronic drivetrains, the platform offers the versatility to match your preferred setup while maintaining a clean, race-ready appearance.
Shop Now

Aether

Features

T47 EXTERNAL BOTTOM BRACKET

T47 bottom brackets offer a more robust connection for the crankset, improving power transfer and elevating the overall performance of the bicycle.

Full Internal Cable Routing

With a supreme clean aero look, the full internal routing streamlines speed and provides seamless integration with electronic shifters.

UCI APPROVED FRAME & FORK

Take your race game to the next level. The aero design of the Ares is compatible with current UCI regulations, ensuring you maximise the potential of every watt you produce.

AERODYNAMIC DESIGN

A sleek, wind-defying frame crafted from lightweight carbon fiber, designed to cut through the air with minimal drag

Flat mount brake mounts

Designed to offer a sleeker, more integrated look

Who is it for?

Developed around the demands of modern riders, it combines cutting-edge engineering, aerodynamic efficiency, and tailored performance to deliver an exceptional riding experience on every ride.

X-Small
  • 5' - 5'3"
  • Crank Length: 170mm
  • Stem: 8cm
  • Bar Width: 40cm
Small
  • 5'4" - 5'7"
  • Crank Length: 170mm
  • Stem: 9cm
  • Bar Width: 42cm
Medium
  • 5'8"- 5'10"
  • Crank Length: 172.5mm
  • Stem: 10cm
  • Bar Width: 44cm
Large
  • 5'11" - 6'1"
  • Crank Length: 175mm
  • Stem: 11cm
  • Bar Width: 44cm
X Large
  • 6'2 - 6'5"
  • Crank Length: 175mm
  • Stem: 12cm
  • Bar Width: 46cm

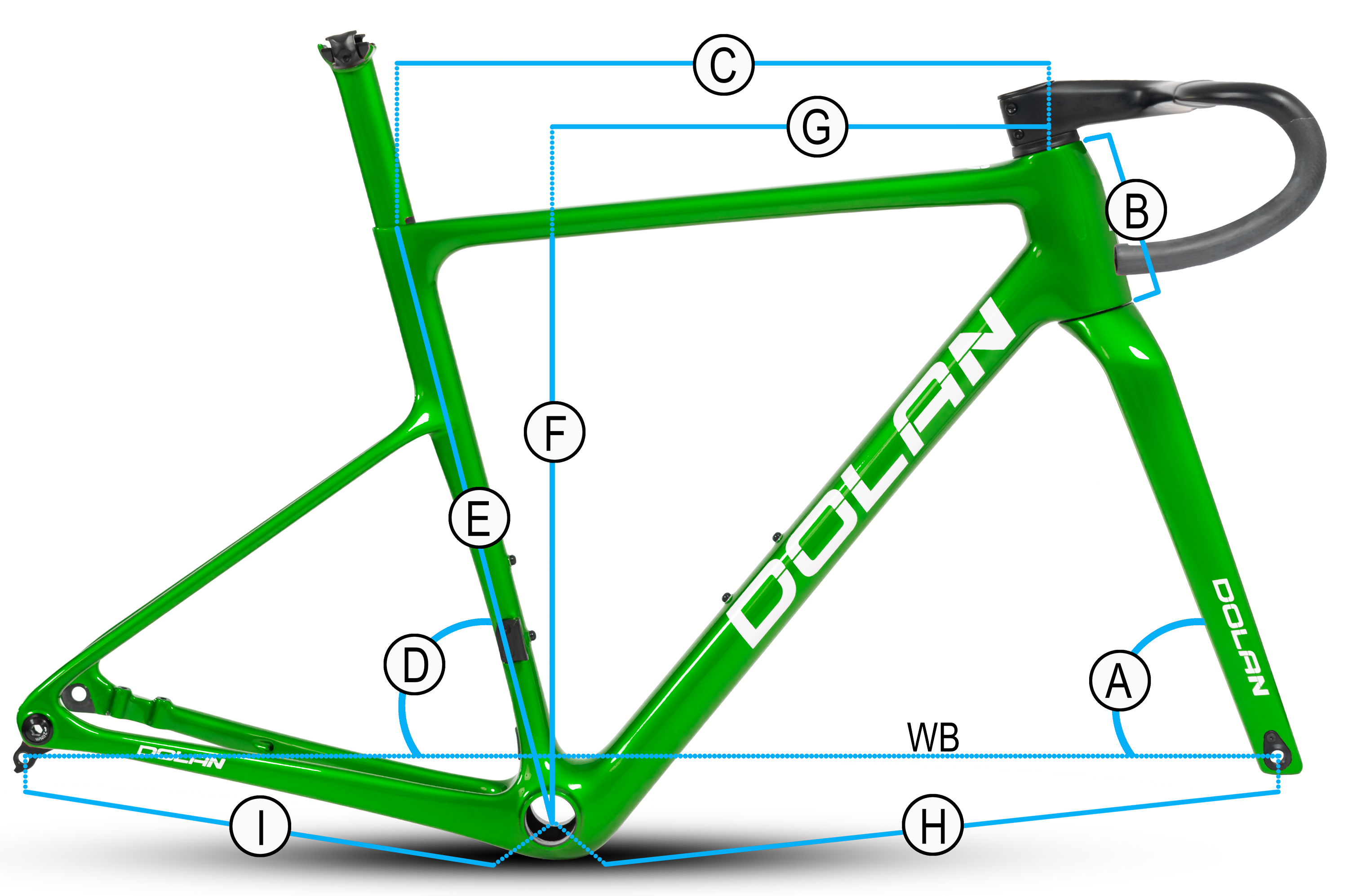

Size XTRA SMALL SMALL MEDIUM LARGE EXTRA LARGE
A Head Angle 71.75 72.5 73 73.5 73.5
B Head Tube Length (mm) 110 120 135 155 180
C Effective Top Tube Horizontal (mm) 509 532 541 563 577
D Seat Angle 75.5 74 74 73.5 73.5
E Seat Tube Length Center To Top (mm) 445 455 475 495 515
F Stack (mm) 519 534 548 568 592
G Reach (mm) 375 380 384 395 402
H Front Center (mm) 574 577 581 593 607
I Rear Center (mm) 410 410 410 410 410
Wheel Base (mm) 973 976 980 993 1006

Faqs

Want to find out more about The Dolan Aether? What is the warranty? Or What does the Aether weigh? The Answers to these and more can be found below.
The super stiff, lightweight carbon fibre frame weighs approximately 1.1kg frame Only
All Dolan branded frames and forks purchased after January 1st 2024 carry a lifetime warranty

The Aether has clearance for 32mm tyres Max.

There are 2 sets of bottle cage mounts

We recommend a maximum rider weight of 120kgs.

Aether carbon Aero seatpost and is supplied with the bike

T47 68MM External

The frame takes flat mount hydraulic disc brakes.

Due to the many different systems people use we do not supply pedals with bikes.
